Small davit arm with extensions
The only davit arm system on the market that offers true mounting versatility.
Complies with ANSI, OSHA, EN 795, and CEN/TS 16415 standards.
The same unit can be deployed on a manhole collar for manhole access or on a base plate for tank entry and rescue, maximizing your equipment investment.
Designed for efficiency and speed. A single operator can install, secure, and begin operations in under three minutes, completely tool-free.
IN-8016 Universal Davit & Mast Safety System
Unique Configuration
The IN-8016 Universal System from Xtirpa™ combines a davit arm and mast with an optional extension, delivering a full rescue-ready system. Built to serve as both an anchor point and support structure, it’s crafted to be among the lightest, ergonomic systems in its class.
Key Features
Rated for a safe working load of 360 lbs (164 kg). The system is certified to support up to two users from a single anchor, in compliance with EN-795:2012 Type A, TS166415:2013, ANSI/OSHA/CSA standards.
The system accepts various mast extensions, adapter bases, side-entry components, and fixed or optional accessories to tailor to many confined space layouts , manholes, pits, vessels.
Fully compliant with EN-795:2012 Type A, TS16415:2013, ANSI, OSHA and CSA standards. Regular inspection, proper installation, and trained operation are required.
SRL / Winch Compatibility
Equipped with certified anchor points designed to integrate with SRLs (Self-Retracting Lifelines) and winches. Use with EN-361 harnesses and energy absorbers per local/regional regulation.
Expandability & Modularity

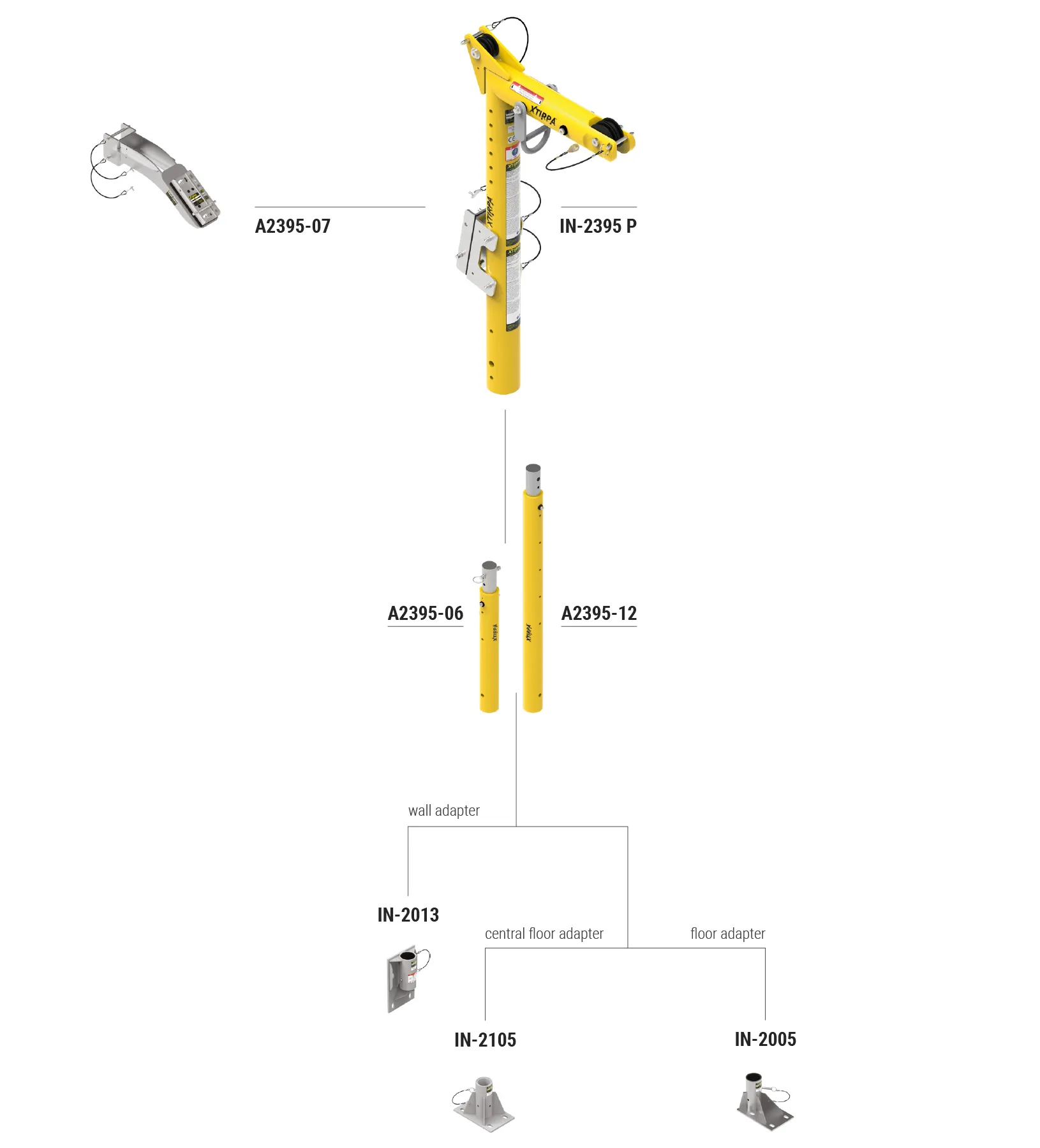

Components can be swapped or adjusted: different adapter bases, mast extensions, and mounting options allow the IN-8016 to adapt to varying job conditions and space constraints. Perfect where permanent anchors are impractical.
Fast Installation & Intuitive Use
Designed for fast setup by trained personnel. Locking pins, adapters, and mast sections are engineered for quick assembly and dependable anchoring. Clear marking on components ensure load and safety status are always known.
Standards
ANSI Z359.1
AS/NZS 5532
CSA Z259.2.1
OSHA 1910.66
EN795 – Type A
TS 16415
Material
Aluminum or anodized
Safe working load
164kg
Weight
Davit IN-2395: 10,4 Kg / 23.0 Lb
Mast extension A2395-06: 4.7kg / 10.4 Lb
Mast extension A2395-12: 7.2kg / 15.8 Lb
