Wide range of accessories for modular use in various environments.
610 mm (24″) arm, ideal for manholes and shafts.
Adjustable feet for quick stabilization on uneven ground, without tools.
Tool-free assembly, secured with safety pins.

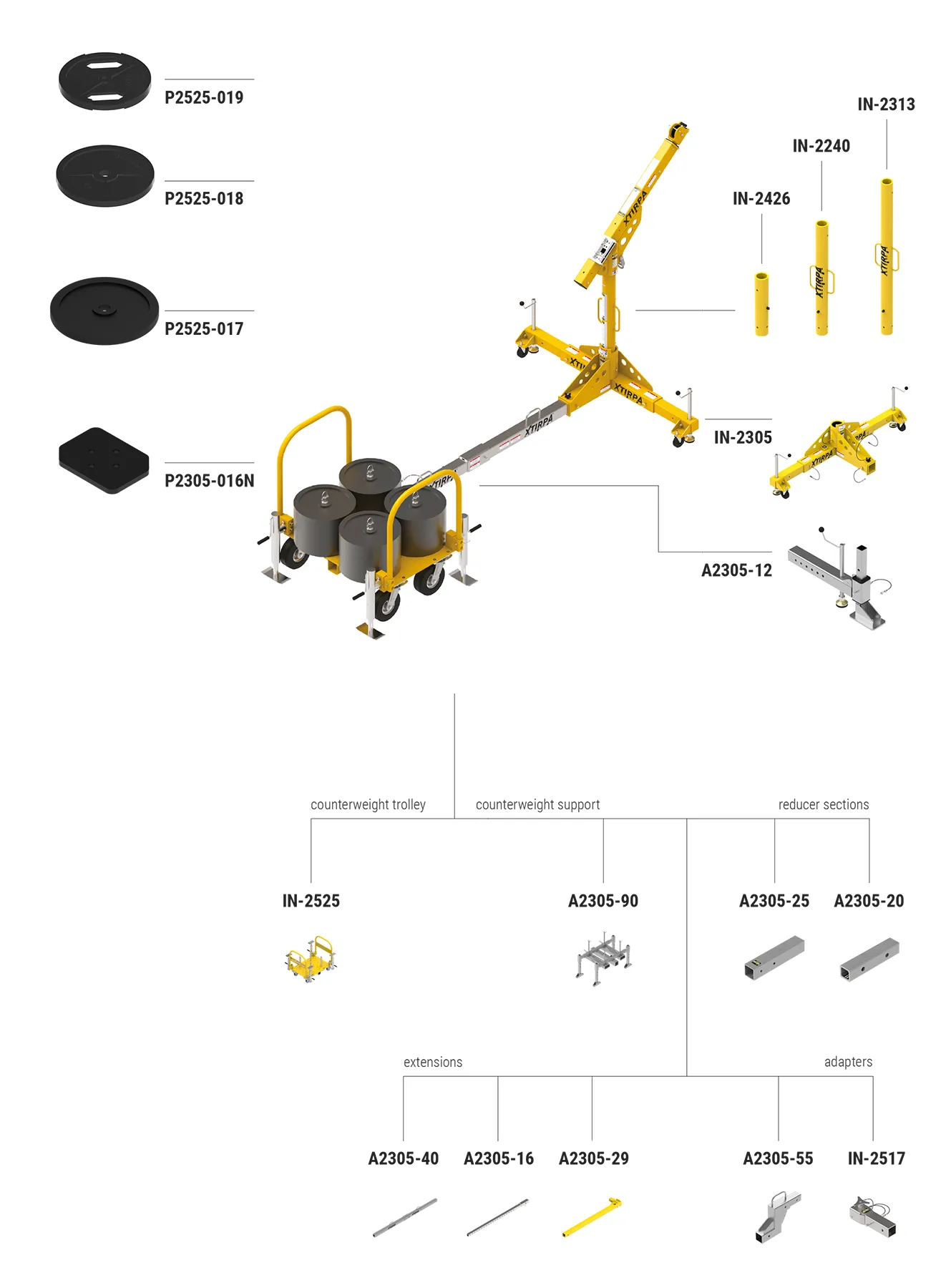

Wide Range of Adapters Based on the Structure

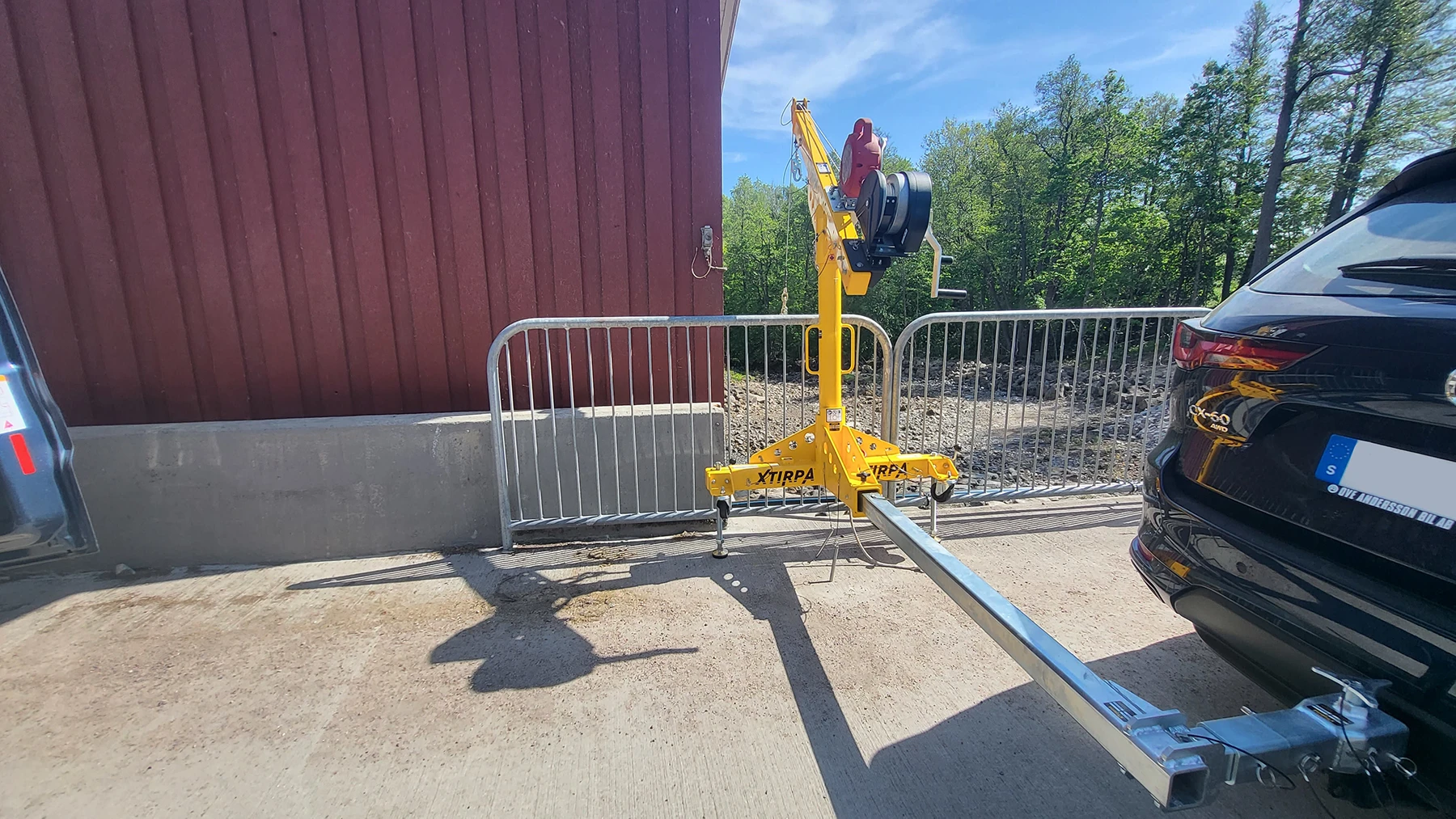

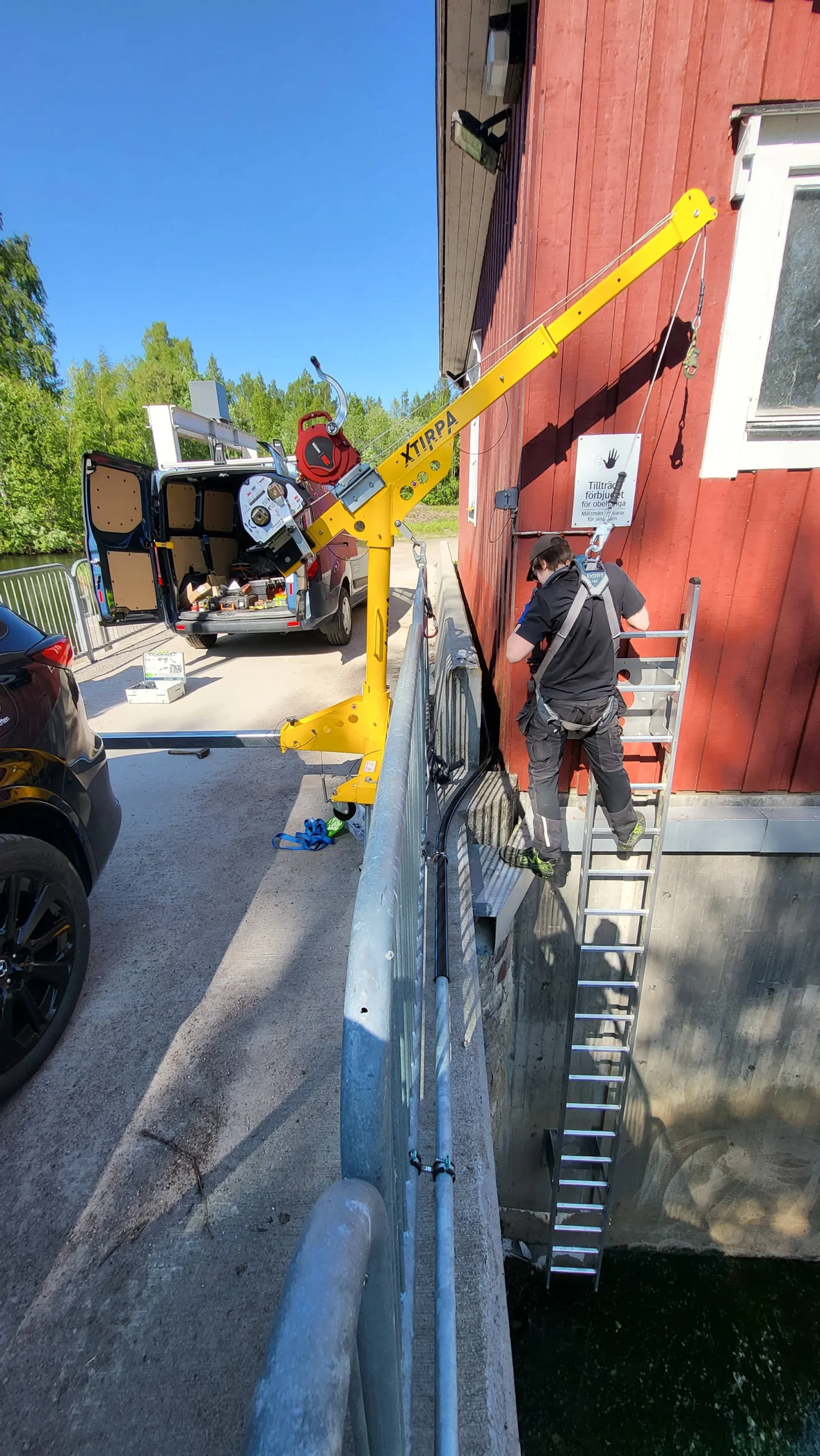

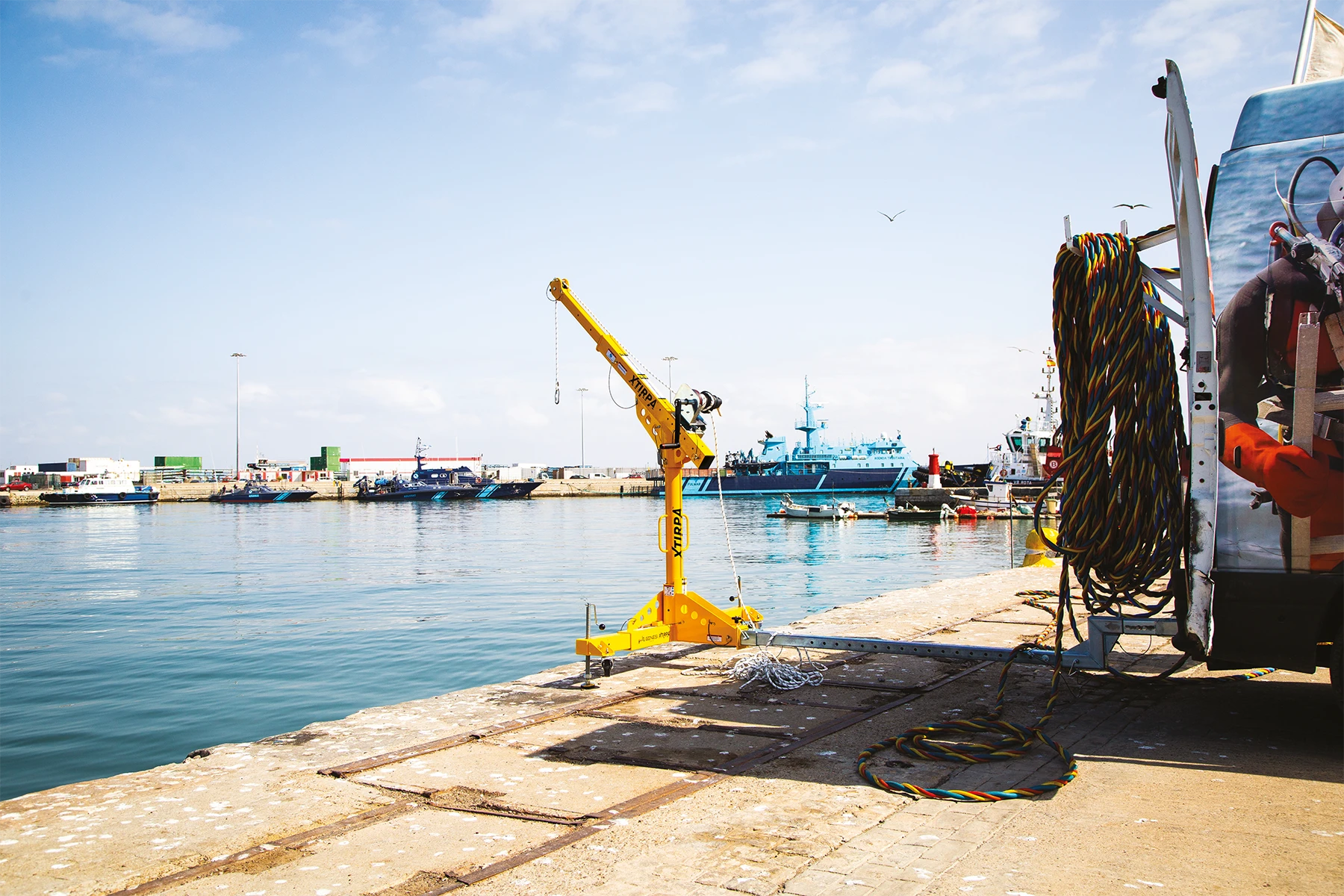

The IN-8012 system consists of an IN-2240 mast, an IN-2237 davit arm, and a T-stabilizer (IN-2305). The system can be used as both a mobile and fixed anchor point. Thanks to a broad range of accessories, the T-stabilizer can be attached to a tow hitch (50 mm), a mobile counterweight, or a mezzanine using an adjustable C-clamp. When using the tow hitch, an optional extension can be added, with or without a 90° angle. This setup offers an innovative and flexible rescue solution for vertical access to shafts, pits, or trenches.
Mobile Solution

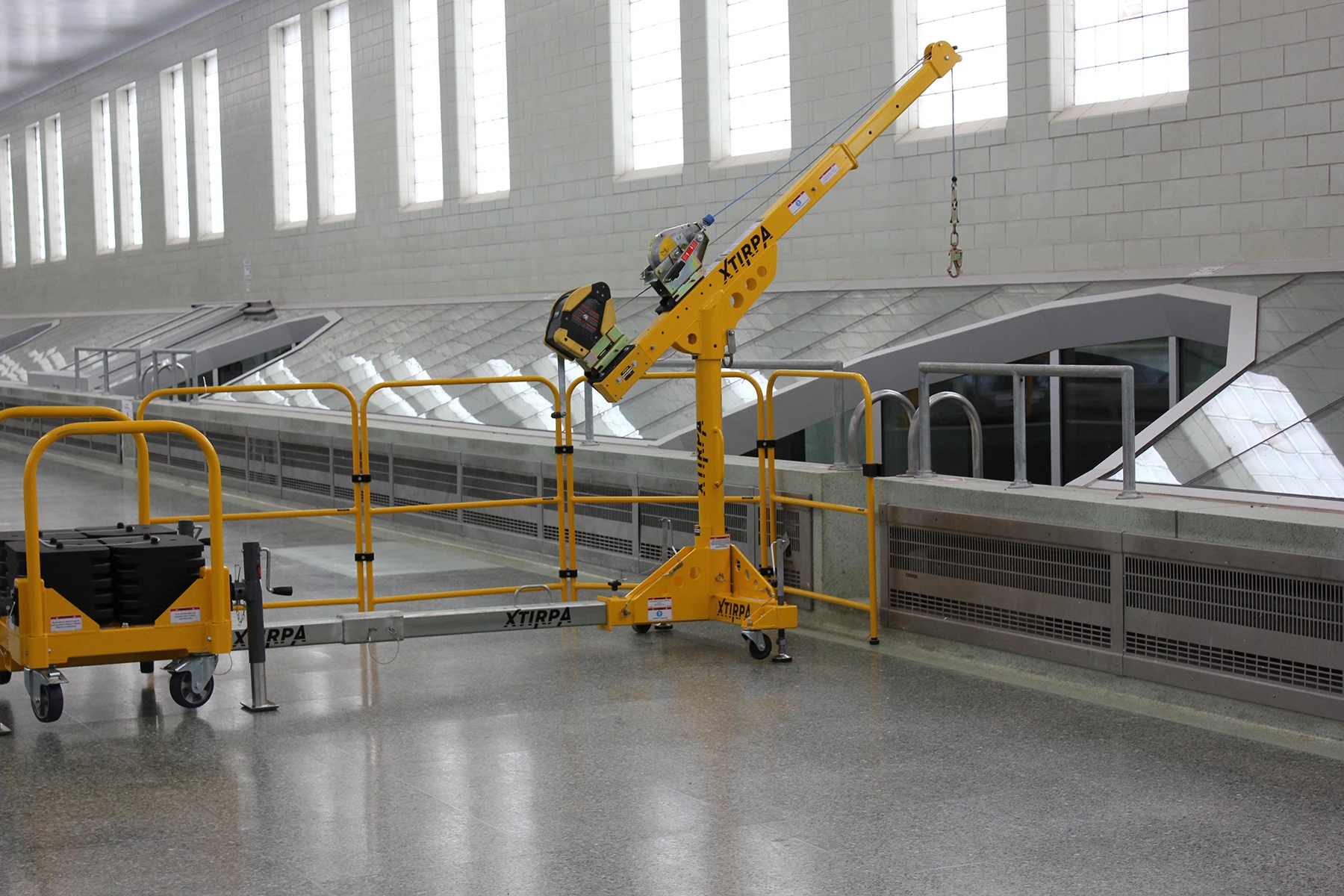

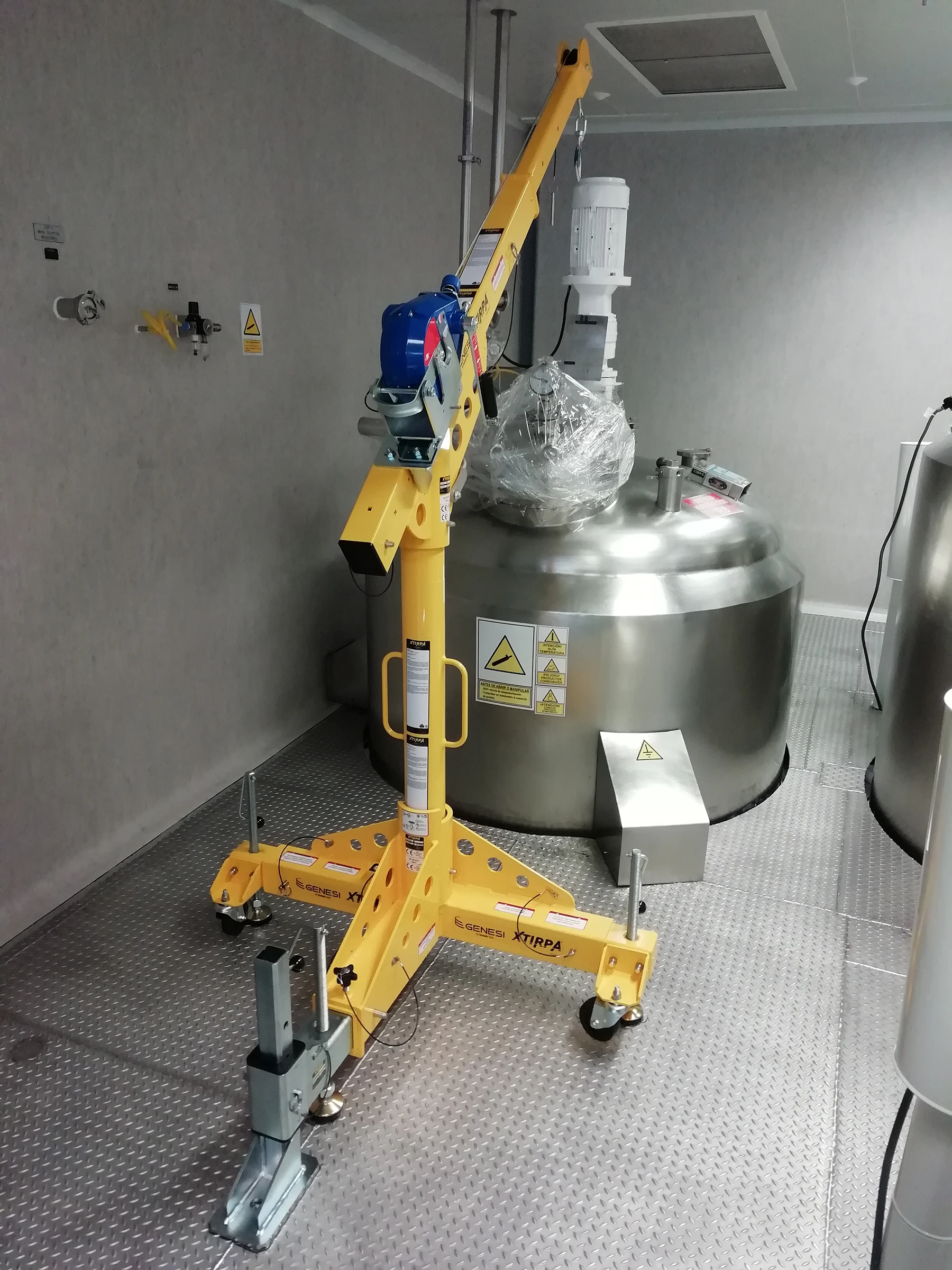

The T-stabilizer with wheels, in combination with a mobile counterweight, is easy to move over flat, hard surfaces.
SRL / Winch Compatibilit
The IN-8012 is compatible with various winches, including the Xtirpa™ winch IN-2477. Multiple mounting brackets are available for a wide range of SRLs.
Strong Anchor Point for 2 Persons
The access system is designed for a safe working load up to 164 kg and has a breaking strength of 19.5 kN, complying with EN, OSHA, ANSI, and CSA standards. It is certified for up to two persons under CEN/TS 16415. The steel D-anchor in the center of the arm has a breaking strength of 22 kN.
Quick, Intuitive Installation and Movement
The system is installed in just a few minutes without tools: the mast is placed onto the stabilizer and the davit arm is locked onto the mast using safety pins.
Standards
ANSI Z359.1
AS/NZS 5532 FREEFALL
CSA Z259.2.1
OSHA 1910.140/1926.502
EN795 – Type A
EN795 – Type B
ANSI Z359.18 Type D
AS/NZS 5532 FREEFALL
CSA Z259.15 CLASS AD
OSHA 1910.140/1926.502
EN795 – Type E
ANSI Z359.18 Type D
AS/NZS 5532 FREEFALL
CSA Z259.15 CLASS AD
OSHA 1910.140/1926.502
TS 16415
North American Standards
ANSI Z359.1
CSA Z259.2.1
OSHA 1910.66
Material
Aluminum
Safe Working Load (WLL)
164 kg (360 lb)
Adjustable Height
From 1892 mm to 2242 mm
T-Stabilizer Dimensions
Minimum: 1080 × 560 mm
Maximum: 1399 × 560 mm
Weight
Davit arm: 50lb / 23 kg
Mast: 42lb / 10.4 kg
T-stabilizer: 73lb / 33 kg
